Grooved-Adaptor-Flanges

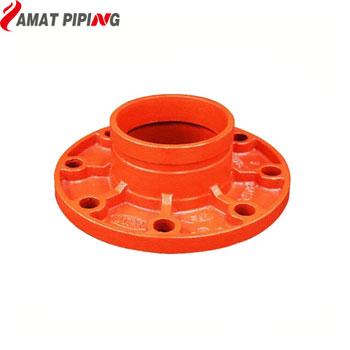

Grooved Adaptor Flanges

- Standards: ANSI/ASTM, ISO, EN, BS, DIN, JIS
- Approvals: UL/FM, CE, BSI, ISO9001
- Pressure: 300PSI / 2.07MPa
- Threads: BSPT, NPT, DIN, ISO
- Finish: Epoxy Powder,Galvanization,Painting
-Materials: ASTM A-536 Gr.65-45-12, EN1563

Description
Inquiry

LAMAT PIPING - Ductile Iron Grooved Pipe Fittings
Name	Rigid coupling, Flexible coupling, 90° Elbow, 45° Elbow, 22.5° Elbow, 11.25° Elbow, Split Flange, Adaptor Flange, Cap
	Tee, Reducing Tee(Grooved/Threaded), Mechnical Tee(Grooved/Threaded), U-bolted Mechnical Tee
	Cross, Reducing Cross(Grooved/Threaded), Mechnical Cross(Grooved/Threaded)
	Reducer(Grooved/Threaded), Grooved Eccentric Reducer
H.S. CODE	7307110000
Technology	Casting
Connections	Grooved-Thread End, Grooved End
Pressure Rate	300PSI / 2.07MPa
Size	1'' - 12''
Pipe O.D.	33.7MM - 323.9MM
Surface Finish	Epoxy Powder,Painting,Galvanization,Dacromet (in Red/Orange/Blue/White Color)
Design Standard	American Standard	ANSI/ASTM
	European Standard	EN
	British Standard	BS
	Germany Standard	DIN
	Japanese Standard	JIS
	ISO Standard	ISO
Thread Standard	ASME B.1.20.1 / EN10226 / DIN2999 / ISO7-1 / ISO228 / IS554 / BS EN10226 / BS 21.173
Material Standard	Ductile Iron confirms to ASTM A-536 Gr65-45-12,EN1563,JIS G5502,QT450-12
Gasket Material	EPDM,NBR or Silicon Rubber
Bolts & Nuts	ISO 898-1class 8.8
Flanges Standard	PN series or Class series
Packages	Plywood Cases or Plywood Pallets or Boxes
Application	Fire Fighting System,Petrochemical & Gas Industry,Chemical,Machinery,Electric Power,Construction Water Works,Valve Industry,etc.
Advantages	High Quality + Ready Stock + Faster Delivery + Customized
Brand	LMP
Certificate	ISO9001,API,CE,UL/FM
