Black-Iron-Hex.-Cap

Black Iron Hex. Cap

- Standard:ASME B16.3,B16.14,BS EN10242
- Approvals: UL/FM, CE, BSI, ISO9001
- Pressure: 150LBS,300LBS,PN25
- Threads: BSPT, NPT, DIN, ISO
- Finish: Black Iron, Galvanized Iron
- Weight Types: Light, Medium, Heavy

Description
Inquiry

LAMAT PIPING - Malleable Cast Iron Pipe Fittings

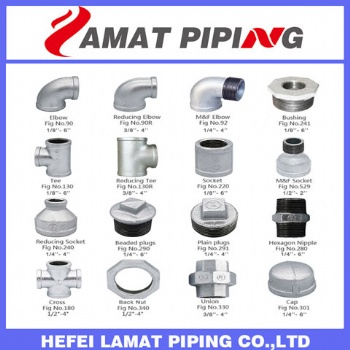

Name	Elbow,Reducing Elbow,Street Elbow,Tee,Reducing Tee,Socket,Reducing Socket,Nipple,Bushing,Union,Bend,Cap,Plug,Back Nut
Technology	Casting
Types	Heavy Type,Medium Type,Light Type
Pressure	PN25 / 2.5Mpa / 363PSI /CLASS 150 / 25Bar / 300PSI
Max. Temperature	200°C (392°F)
Hardness	350MPA
Tensile Strength	HB150 (Brinell)
Hardness	10%
Surface Finish	Steam Black,Electrical Zinc Plated,Cold Galvanised,Hot Dipped Galvanised...
Design Standard	American Standard	ASME B16.3,ASME B16.14,ASME B16.39(Union)
	European Standard	EN10242
	British Standard	BS EN10242,BS143,BS1256
	Germany Standard	DIN2950
	Brazil Standard	NBR6943
	ISO Standard	ISO 49,IS1879
Thread Standard	ASME B.1.20.1 / EN10226 / DIN2999 / ISO7-1 / ISO228 / IS554 / BS EN10226 / BS 21.173
Material Standard	Malleable Iron to ASTM A-197,ASTM A47
Size	1/8"-6" // DN6-DN150
Packages	Plywood Cases or Plywood Pallets or Boxes
Application	Petrochemical & Gas Industry,Chemical,Machinery,Electric Power,Ship Building,Construction Water Works,Valve Industry,etc.
Advantages	High Quality + Ready Stock + Faster Delivery + Customized
Brand	LMP
Certificate	ISO9001,API,CE,UL/FM

Black Iron Hex. Cap
