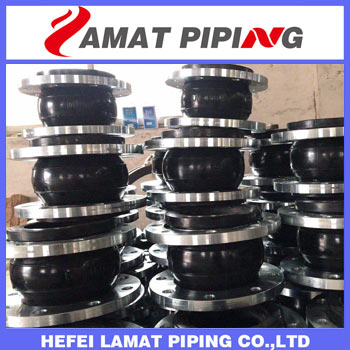

Flanged Rubber Expansion Joint

- Standards: ANSI/ASTM, EN, BS, DIN, ISO, JIS, GOST
- Approvals: UL/FM, CE, BSI, ISO9001
- Types: Threaded End, Flanged End, Welded End
- Pressure / Temp.: Max 4.0MPa / Max 1300 deg. C
- Threads: ASME B 1.20.1, BS21, DIN2999, ISO7/1
- Sizes: 1'' - 80'' (DN25 – DN2000)
- Flanges: Galv. Steel Q235, Stainless Steel 304/316
- Bellows: NR, NBR, EPDM, Nylon, Steel

Description
Inquiry

LAMAT PIPING - Bellows & Expansion Joints
Name	Rubber Expansion Joint, Single/Double Sphere Rubber Joint, Flanged Rubber Expansion Joint,
	Concentric Reducing Rubber Joint, Tie Rod Limit Rubber Joint, Eccentric Reducing Rubber Joint,
	Clamp Type Rubber Joint, Rubber Joint with Pressure Ring, PTFE Lined Rubber Expansion Joint,
	90° Elbow Rubber Joint, Union Type Rubber Expansion Joint
H.S. CODE	40169990.9
Technology	Bellows Forming
Connections	Threaded End Connection, Flanged End Connection, Clamp Connection, Welded Connection
Bellow Type	Single Layer or Multi-Layer
Bellow Material	NR, NBR, EPDM, Nylon
Flanges Materials	Galvanized Carbon Steel Q235, Stainless Steel SS304/SS316/SS321
Flanges Standard	ANSI B16.5,EN1092-1,BS4504,SABS1123,JIS B2220,AS2129,GOST 12820-80,DIN2576,DIN2501,ISO 7005-1
Thread Standard	ASME B.1.20.1 / EN10226 / DIN2999 / ISO7-1 / ISO228 / IS554 / BS EN10226 / BS 21.173
Design Pressure	Max 4.0MPa
Design Temp.	Max 1300 deg. C
Size	DN25-DN2000
Pipe O.D.	33.7MM - 323.9MM
Design Standard	American Standard	ANSI/ASTM
	European Standard	EN
	British Standard	BS
	Germany Standard	DIN
	Japanese Standard	JIS
	ISO Standard	ISO
Bolts & Nuts	ISO 898-1 class 8.8
Packages	Plywood Cases or Plywood Pallets or Boxes
Application	Fire Fighting System,Petrochemical & Gas Industry,Chemical,Machinery,Electric Power,Construction Water Works,Valve Industry,etc.
Advantages	High Quality + Ready Stock + Faster Delivery + Customized
Brand	LMP
Certificate	ISO9001,API,CE,UL/FM
